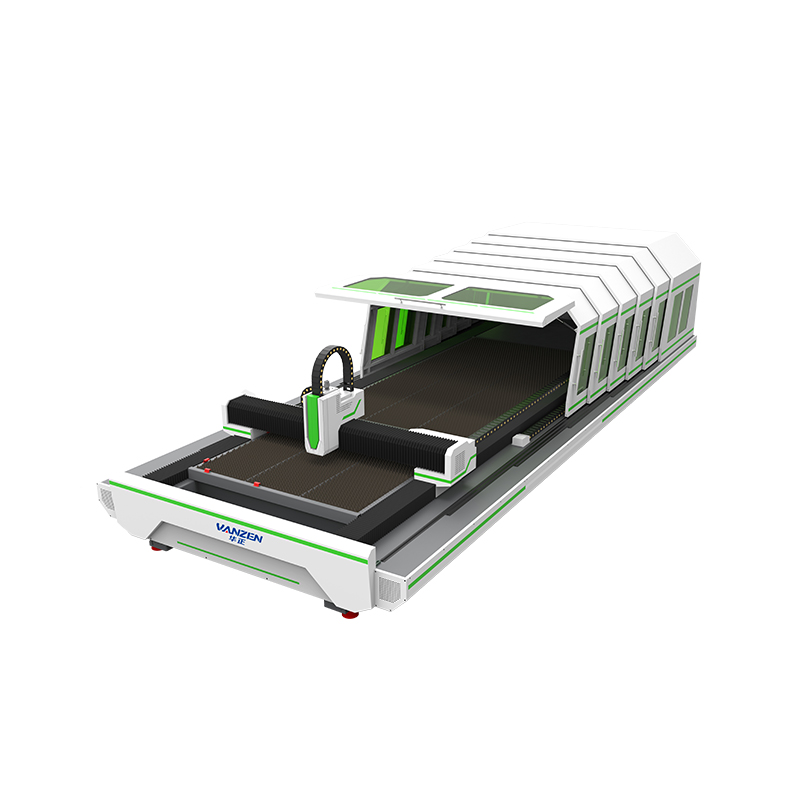

Main Technical Param
Model | D1 2040/2060 |
Working area | 2000x4000mm/2000x6000mm |
Laser power | 1500W/2000W/3000W/6000W |
Laser source | Raycus/BWT |
Laser head | Raytool (autofocus) |
Cooling type | Hanli / S&A Chiller |
Control system | Cypcut control system |
Reducer | Japan Reducer |
Drive system | YASKAWA servor motor and driver |
Transmission | Taiwan high precision rack |
Guiding rail | Taiwan rail |
Dust proofing and waterproofing design | X,Y axis with plastic dust proof |
Engraving speed | 0-30000mm/min |
Laser out-put control | 0-100% set by software |
Power supply | AC380V 50HZ 3phase |
Weight | 3500kgs/4500kgs/5500kgs/ |
Applicable materials demand side configuration requirements:
1) The buyer needs to prepare its own power supply: AC380/50HZ/100A, ±5%, it needs to be equipped with air compressor power supply;
2) The buyer needs to prepare its own gas source: oxygen or nitrogen or compressed air. Purchase gas from a regular gas company to ensure gas quality;
3) The buyer prepares its own water source: regular purified water is required.
Equipment working environment requirements:
serial number | Requirements |
1 | Input power of the whole machine: 12KW |
2 | Power supply requirements: (recommended to use a regulated power supply) Rated output voltage: 380V/50Hz Voltage stability: +5% |
3 | Compressed air supply device (recommended to configure an air storage tank, cold dryer) Volume: 1m3 Rated pressure: 1.5Mpa Air flow: 1 l/min |
4 | Auxiliary gas Oxygen≧99.95% Nitrogen≧99.99% Cutting auxiliary gas Purity requirements Oxygen (O2) ≥99.95% Nitrogen (N2) ≥99.99% |
Equipment installation and use environment description:
1) Fiber laser environment requirements: temperature is 15-35 ℃, relative humidity is less than 85%.
2) On-site power distribution cabinet: 380V, 50Hz, three-phase four-wire, with short circuit protection, etc.
3) The equipment should be installed with special grounding, and its grounding resistance should not exceed 4Ω.
4) Provide necessary lifting equipment and personnel.
5) Provide materials needed for on-site equipment debugging, such as steel plates.
6) Provide temporary access permits for debugging personnel.
Auxiliary conditions required for normal operation of laser cutting equipment:
(1) Cutting auxiliary gas (N2, O2);
(2) Water-free and oil-free compressed air supply system.
Equipment space and foundation requirements:
The foundation is concrete with a minimum thickness of 300 mm; there is no seismic source or shock absorption groove around the foundation.
Scope of applicable materials:Mainly used for metal carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickled sheet, aluminum-plated zinc and copper sheets, and other metal materials.
Industry application
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, food machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , Metal processing and other manufacturing industries
Product Description

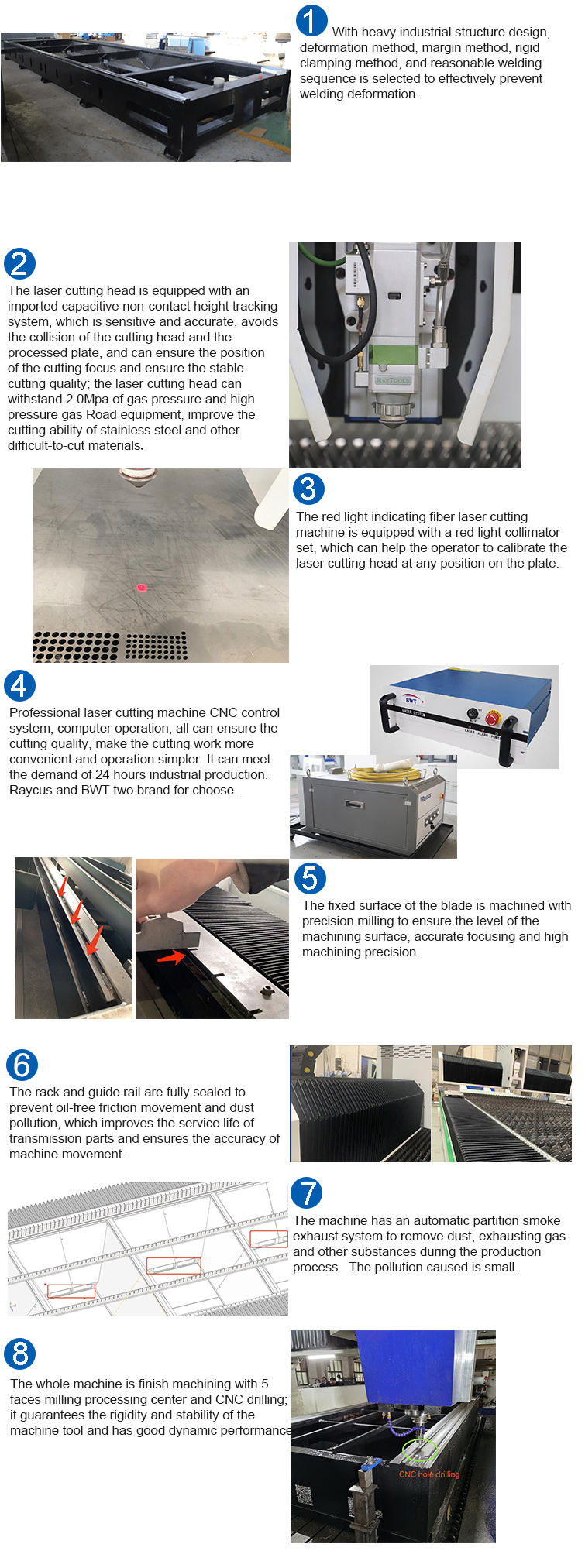

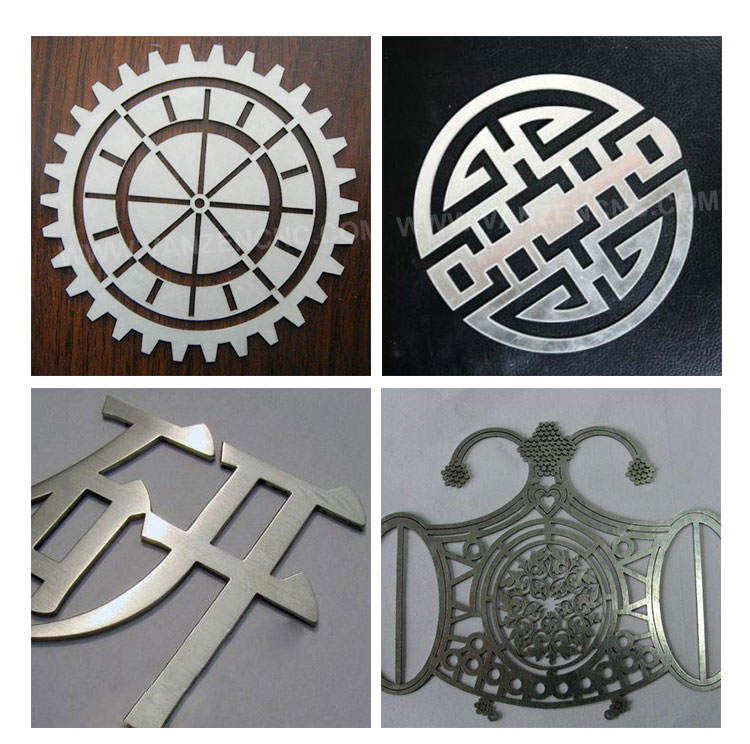

Sample Pictures
