LGL-1390

Detail

Model	LGL-1390
Machine size	195015501050mm
Engraving area	1300x900mm
Laser tuber	100W
Laser-type	sealed CO2 glass laser tube
Cooling mode	Water cooling system 5000 Chiller
Power adjusting	1-100% software setting
Machine control and drive	RUIDA controlling system, stepper motor and belts
Max engraving speed	0-7000mm/min
Max cutting speed	0-4000mm/min
Repeating location	±0.01mm
Working voltage	AC220V/50HZ
Working environment	Temperature: 0-45℃,Humidity: 5%-95%
Graphic format supported	BMP, PLT, DST, DXF, AI
Weight	500 KGS

Sandard parts:

Knife wortable or honey comb worktable, co2 laser tube,Ruida control system ,America lens and mirrors,power cut software,water cooling system,air blowing system,exhaust fan and wind pipe.

Options

Up-down work table ,rotary attachment,red dot pointer,auto-focus。

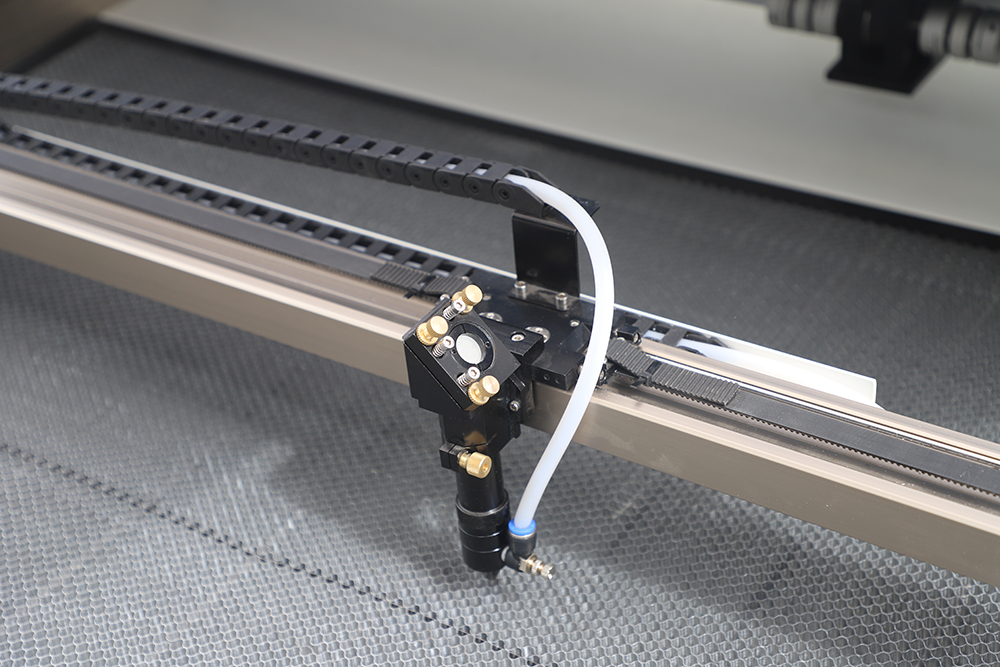

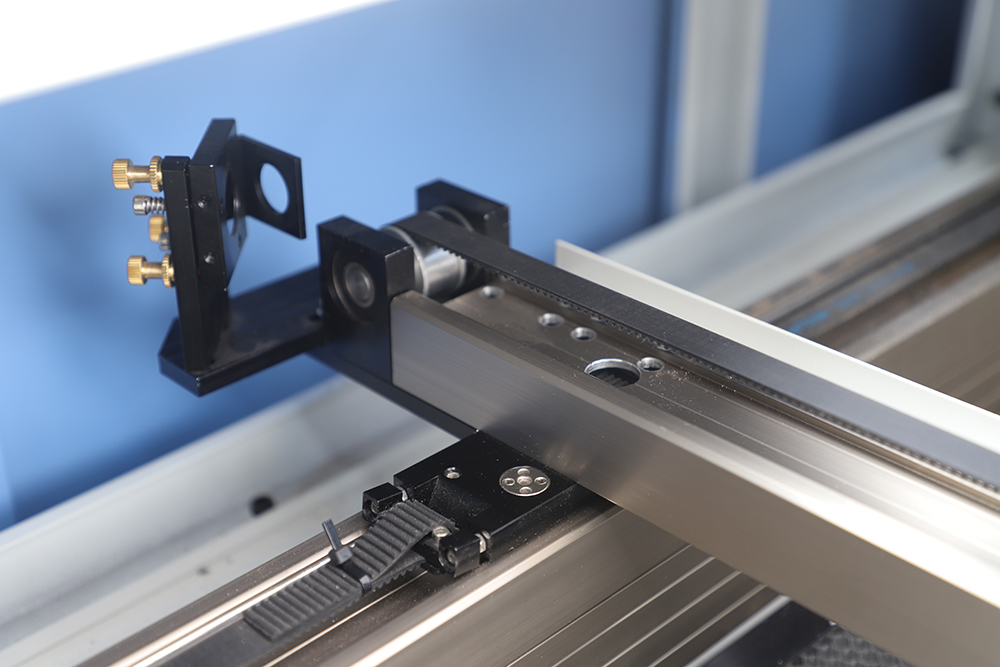

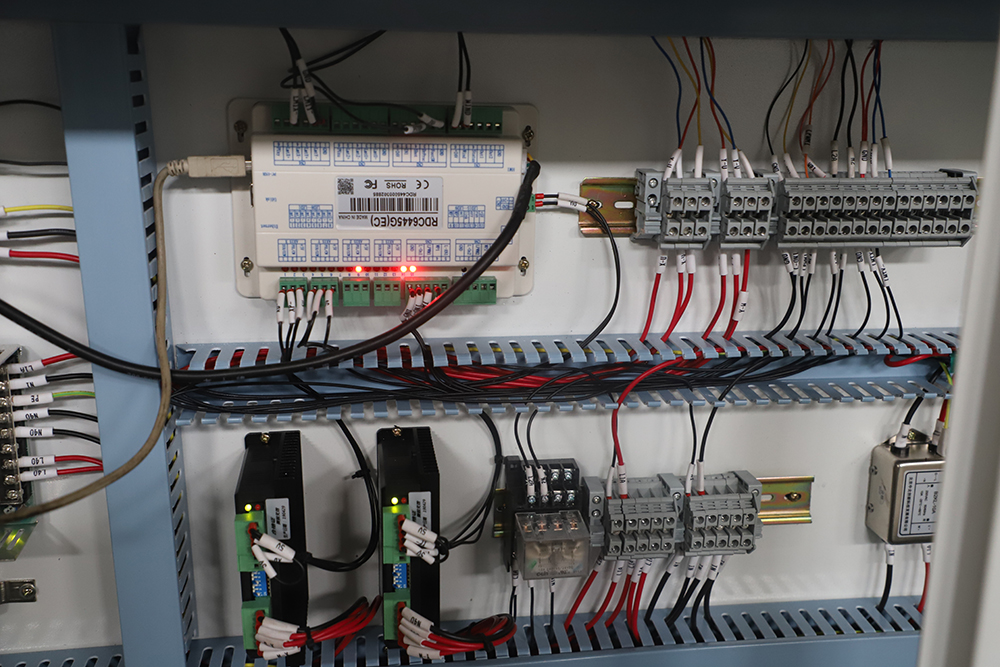

Detailed Images
